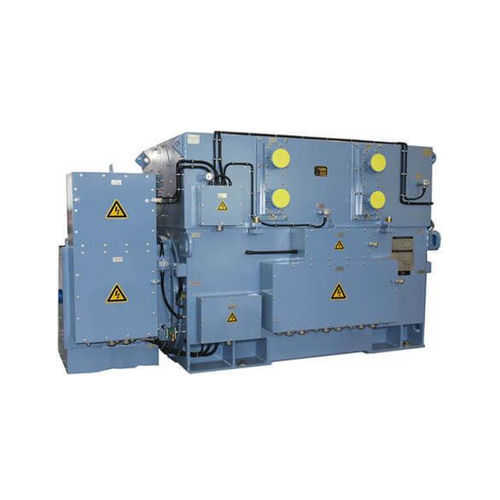

Wind turbine generator

synchronousair-cooledwater-cooled

Elom's wind generator motor including squirrel cage generator, slip ring doubly fed Induction Generator and permanent magnet synchronous generator, they are widely used in different circumstance to work with wind turbine generator sets Squirrel cage wind turbine generator is an induction generator with cage rotor structure, with power grade of 250KW to 5MW. It is used to support wind turbine generators with different power. The motor is installed in the engine room. The rotating shaft at the driving end is connected with the gearbox through the coupling to receive mechanical power, and the stator is connected with the power grid through the full power converter. The motor can operate within the speed range of 600 ~ 1800rpm to realize the conversion of mechanical energy into electrical energy. It has the characteristics of high efficiency, simple maintenance, high reliability and simple control. Because the air volume changes all the time, the squirrel cage can well stabilize the generator speed in torque control and deliver stable 50Hz AC of different powers to the power grid through stator. • The motor adopts H-class insulation system and vacuum pressure dip paint, and the insulation system can withstand high peak voltage; • The rotor adopts high-speed dynamic balance technology, which can ensure low vibration of the motor in the full speed range • The bearing system adopts anti shaft current design, which can ensure the safe and reliable operation of the motor; • The motor has passed ETL and CE certification and can be exported to North America and Europe.
