Variable-frequency motor YPKK series
ACasynchronous> 1000 V

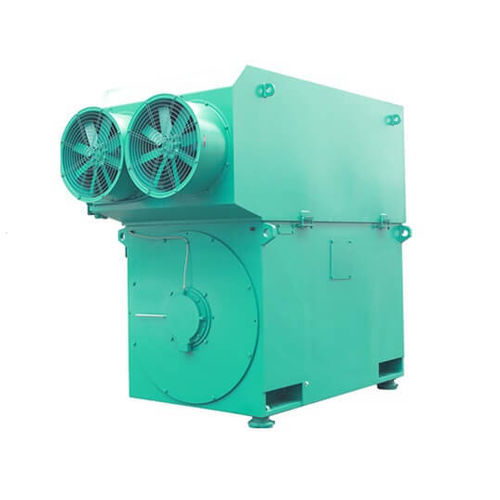

Variable-frequency motor - YPKK series  - Elom Motor - AC / asynchronous / > 1000 V
Variable-frequency motor - YPKK series  - Elom Motor - AC / asynchronous / > 1000 V
Variable-frequency motor - YPKK series  - Elom Motor - AC / asynchronous / > 1000 V - image - 2
Variable-frequency motor - YPKK series  - Elom Motor - AC / asynchronous / > 1000 V - image - 3
Variable-frequency motor - YPKK series  - Elom Motor - AC / asynchronous / > 1000 V - image - 4
Variable-frequency motor - YPKK series  - Elom Motor - AC / asynchronous / > 1000 V - image - 5
Variable-frequency motor - YPKK series  - Elom Motor - AC / asynchronous / > 1000 V - image - 6
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
asynchronous
Voltage
> 1000 V
Protection class
IP55, IP54, IP56, IP23, IP24
Configuration
squirrel cage, vertical
Efficiency classes
IE2, IE3, IE4
Cooling mechanism
air-cooled
Applications
for pump, blower, for conveyors, for compressors, for cutting machine, for crusher
Other characteristics
high-efficiency, low-noise, NEMA, variable-frequency, UL certified
Power

Max.: 16,000 kW
(21,753.938 hp)

Min.: 160 kW
(217.539 hp)

Description

YPKK variable frequency high voltage motor design for driving equipment which need change speed when is working . the motor Coiling method: IC06, IC416, IC516, IC616, IC666, IC81W, They are widely use for pump and blower applications. Frame Including: 315,355,400,450,500,560,630,710,800,900,1120 Coiling method: IC06, IC416, IC516, IC616, IC666, IC81W Mounting type: IMB3, IMB35, IMV1,IM7311 Color: blue or as requirement Insulation class: F or H Temperature rise: B or F Accessory: PT100, PTC, PTO, Space heater, SPM vibration sensors YPKK squirrel cage high voltage vfd motors are designed on base standards of IEC 60034 and NEMA MG1 electrical part, having performance characteristics in accordance with requirements of load torque inertia and efficiency. YPKK motors have a welded steel frame. They are rated from 160 to 16000 kW, and are available at 50 and 60 Hz in shaft heights from 315 to 1120 mm. The complete range is designed for fixed speed drive applications with DOL power supply, and is available for VFD cases fed by frequency converters The motors are available for horizontal or vertical mounting. Vertical mounting is specifically designed for vertical, condensate and circulating water pumps. The motor has a shaft mounted inside fan (if any) using the surrounding air for cooling. The motor is so designed that the ingress of rain, snow and airborne particles into the electrical parts is reduced. The motor is protected such that splashing water from any direction will have no harmful effect. The standard filter material is galvanized steel.
