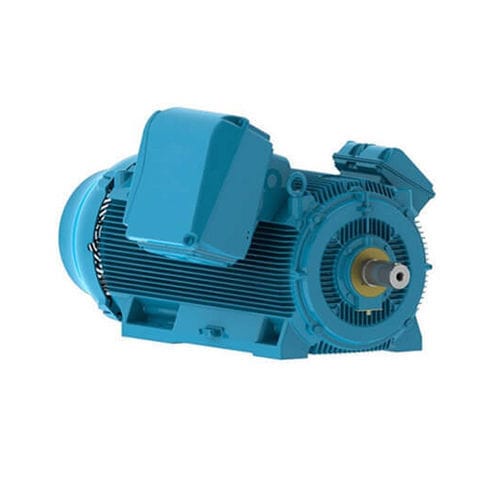

Synchronous motor Y2PT

> 1000 VIP55IP54

Y2PT rib cooling high voltage cast iron motor have a rugged cast iron frame. They are rib cooled motors with IC411 cooling and IP55 protection as standard. The motors are also available with IC416 cooling and optional Frame Including: 315,355,400,450,500,560,630 Cooling method: IC411, IC416 Mounting type: IMB3, IMB35, IMV1 Color: blue or as requirement Insulation class: F or H Temperature rise: B or F Accessory: PT100, PTC, PTO, Space heater, SPM vibration sensors Y2PT rib cooling variable frequency high voltage cast iron motors offering more density power than has ever been achieved before.is often use a motor one frame size smaller than other standard products. This helps to save space and enables more compact installations. Y2PT variable friendcy compact motors have a rugged cast iron frame. They are rib cooled motors with IC411 cooling and IP55 protection as standard. The motors are also available with IC416 cooling and optional IP66 protection. Y2PT compact vfd high voltage motors cover the output range up to 3200 kW, and they are available in shaft heights from 315 to 630 mm. The motors can be mounted horizontally vertical mounting available for 2 poles up to shaft height 355). for Y2pt variable frequency motors echnical data at 50 Hz and 60 Hz, and for synchronous speed from 500 to 3600 rpmare extremely efficient, even at partial load, and they have low noise levels.
