Cutting head

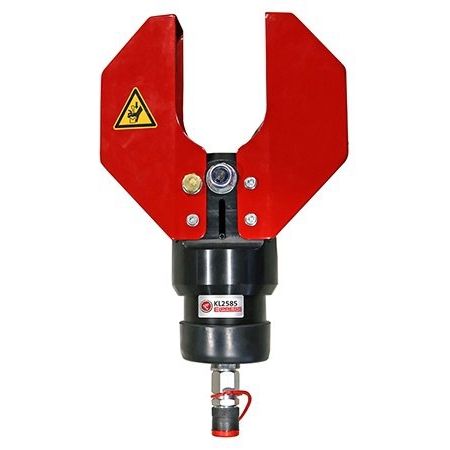

New hydraulic cutting head KL2585, new hydraulic cutting head which cuts conductors with diameters up to 85 mm. The cutter tool is a successor to the popular KL1485 cutter tool - with the same features but now with increased cutting force. The cutting head is mounted on the V250 system. Properties: Used with Elpress pumps, design based on the V250 system 242 kN of force Interchangeable blades Cutting diameter 85 mm Cuts 4 x 150 mm² Cu conductors and Ø 85 mm aluminium, paper and plastic insulated cables (there may be some limitations depending on the material and design of the cable). Also cuts steel reinforced cable, but not steel wire reinforced cable. Compatible with ERGO and ERGOCOM handles for ergonomic handling (PS710E) Weight: 10.35 kg Dimensions: 75 x 250 x 377 mm Supplied in a durable plywood box Ground point (brass bolt) on the cutting head
