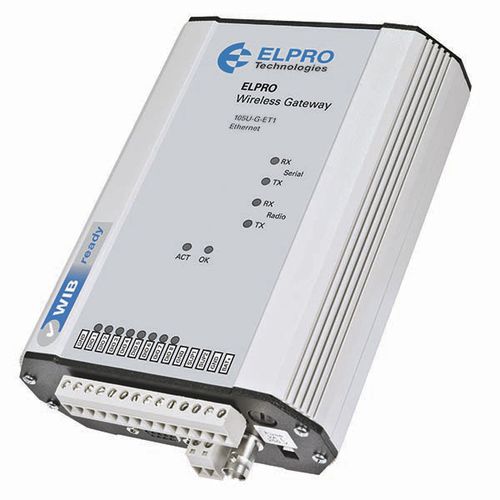

Communication gateway 105U-G series

industrialsecurityEthernet

ELPRO’s 105U-G series support a variety of industrial protocols and can be combined with ELPRO’s 105/505U-I/O and 115S products to create simple to complex I/O and databus networks.multi-hop repeat five times, Using fixed frequency radio bands the 105U-G covers licensed radio channels in most countries. Applications: PLC – PLC, Similar/ dissimilar databuses, SCADA System and remote PLC connection, One way and Multi I/O interconnection to PLCs and DCS/ HMI, Moving machinery, PLC to PLC/ HMI connection, Databus cable replacement, Smart instrument interface and connection Features: -AC/ DC/ battery power options and UPS battery charger and solar regulator. -Interconnects similar/ dissimilar industrial protocols (Master/ Slave, Slave/ Slave, Master/ Master) connecting to databus at full speed (eg 12 Mbps Profibus). -Eight on-board digital I/O which can be configured as either inputs or outputs. Additional internal I/O points include low/normal supply/ battery voltage (analog). -Point to multi-point connectivity with forward error correction, communications integrity check with security encryption. -Online read/ write of register I/O, reporting of signal strength (RSSI) with diagnostics including radio path measurement and communications logging. -Class I Div 2 hazardous areas approval (USA/Canada). Models Available: -105/905U-G-MD1 Modbus RTU (Master & Slave), DF1 Up to 4300 I/O points: analog and/or discrete Modbus – RS232/ 485: 300-19200 bps DF1 (full duplex) – RS232: 300-19200 bps -105/905U-G-ET1 EtherNet IP, Modbus TCP, TCP/ IP functions 2048 bytes input and 2048 bytes output
