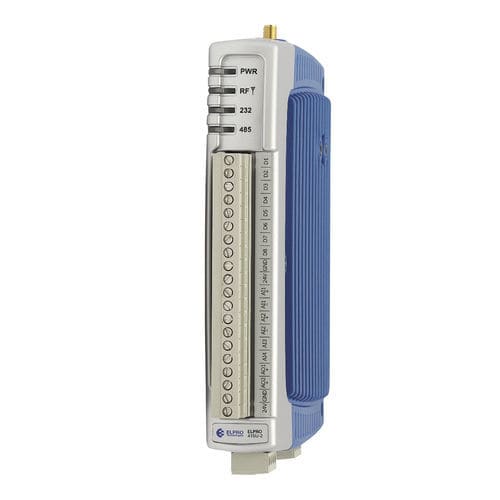

Analog IO module 415U-2 series

wireless2 analog outputs4 analog inputs

ELPRO Condor 415U-2 I/O Gateway now supports IoT with MQTT and Sparkplug gateway for local inputs/outputs and external devices. The latest Condor Series IoT I/O Gateway now includes support for MQTT and Sparkplug allowing IoT connectivity directly at the plant or equipment being monitored or controlled. This makes the 415U-2 “first in class” with built in IoT protocol support for use in narrow band licensed or unlicensed frequencies. The 415U-2 includes protection from cyber attach with advanced cybersecurity features that meet the most stringent standards, event logging and improved configuration software for seamless network setups. The ELPRO 415U-2 Includes data throughput to an industry-leading 140kbps at 25kHz channel using efficient context-based data compression in licensed applications and up to 10W of transmit power. The Condor Series products come in six easy-to-select frequency bands: -148MHz – 174MHz, -340MHz – 400MHz, -400MHz – 480Mhz -470MHz – 520MHz -894MHz – 902MHz -930MHz – 960MHz The ELPRO 415U-2 wireless networking I/O and gateway is a multiple I/O node that extends communications to sensors and actuators in local, remote, or difficult to reach locations. Designed with a long range, license or license-free wireless transceiver, the 415U-2 can provide IP-based networking across sprawling industrial environments typical of industrial applications. Now with MQTT and Sparkplug protocol support, the 415U-2 allows for IoT gateway to be located directly at the plant or equipment. Including I/O timestamping at the source and support for connection with up to four MQTT broker/servers
