High-torque motor BL80 series
DCbrushless48 V

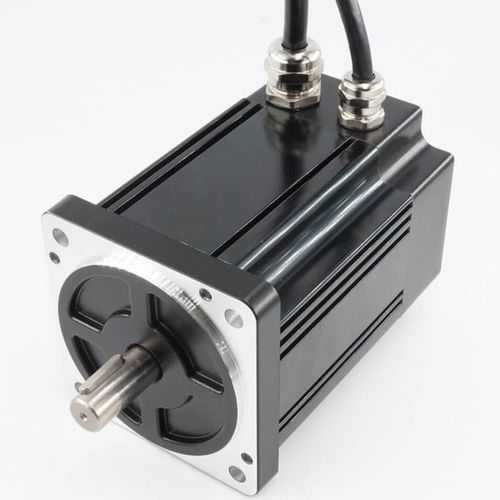

High-torque motor - BL80 series - ELRA Antriebstechnik Vertriebs Ges.m.b.H - DC / brushless / 48 V
High-torque motor - BL80 series - ELRA Antriebstechnik Vertriebs Ges.m.b.H - DC / brushless / 48 V
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
brushless
Voltage
48 V
Protection class
IP65
Number of poles
multipole
Other characteristics
high-torque
Power

150 W, 235 W, 312 W
(0.204 hp, 0.32 hp, 0.424 hp)

Intensity

4.9 A, 7.4 A, 8.7 A

Torque

2.2 Nm, 2.8 Nm, 3.5 Nm
(1.6226 ft.lb, 2.0652 ft.lb, 2.5815 ft.lb)

Rotational speed

650 rpm, 800 rpm, 850 rpm
(4,084.07 rad.min-1, 5,026.55 rad.min-1, 5,340.71 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

The new high-torque BLDC motors from ELRA have a significantly higher torque compared to standard motors of this size. The high-pole rotor design with a nominal speed of 750 rpm makes these motors ideal as direct drives. The elimination of a gear reduction, which is usually necessary, eliminates mechanical wear parts and thus brings the operating time of the drive up to 20,000 hours, depending on the application. • Flange dimension: 80 and 100mm • Overall lengths: 105 to 170mm • Optional: incremental encoder with 4096 pulses/rev / connector assembly / external speed and position controller mcDSA-E25 drivecontroller
