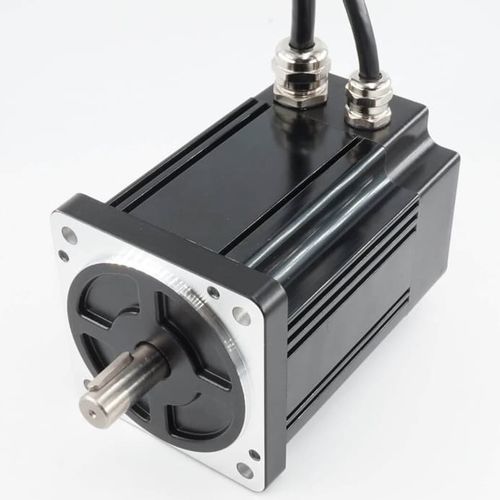

High-torque motor BL100 seriesDCbrushless48 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 48 V
- Protection class
- IP65
- Number of poles
- multipole
- Other characteristics
- high-torque
- Power
257 W, 335 W, 460 W
(0.349 hp, 0.455 hp, 0.625 hp)- Intensity
7 A, 9 A, 12.8 A
- Torque
3.5 Nm, 4 Nm, 5.5 Nm
(2.5815 ft.lb, 2.9502 ft.lb, 4.0566 ft.lb)- Rotational speed
700 rpm, 800 rpm
(4,398.23 rad.min-1, 5,026.55 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
The new high-torque BLDC motors from ELRA have a significantly higher torque compared to standard motors of this size. The high-pole rotor design with a nominal speed of 750 rpm makes these motors ideal as direct drives.
The elimination of a gear reduction, which is usually necessary, eliminates mechanical wear parts and thus brings the operating time of the drive up to 20,000 hours, depending on the application.
• Flange dimension: 80 and 100mm
• Overall lengths: 105 to 170mm
• Optional: incremental encoder with 4096 pulses/rev / connector assembly / external speed and position controller mcDSA-E25 drivecontroller
