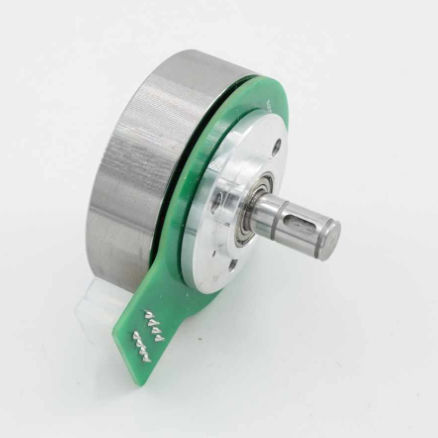

DC motor BLN seriesbrushless24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 24 V, 12 V
- Configuration
- flat
- Number of poles
- 24-pole, 16-pole
- Power
29 W, 52 W, 67 W, 105 W
(0.039 hp, 0.071 hp, 0.091 hp, 0.143 hp)- Intensity
3.25 A, 3.4 A, 3.5 A, 6.9 A
- Torque
0.1 Nm, 0.2 Nm, 0.5 Nm
(0.0738 ft.lb, 0.1475 ft.lb, 0.3688 ft.lb)- Rotational speed
1,400 rpm, 2,000 rpm, 5,000 rpm
(8,796.46 rad.min-1, 12,566.37 rad.min-1, 31,415.93 rad.min-1)- Diameter
45 mm, 60 mm, 90 mm
(1.77 in, 2.36 in, 3.54 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)
Description
Our powerful flat motors are used where space is very limited and high torques are still required. Thanks to their brushless design and high pole construction, these motors achieve long service life and low speeds, completely without gears.
• overall length 25...27mm
• Can be combined with gearboxes, speed controllers and motion controllers
