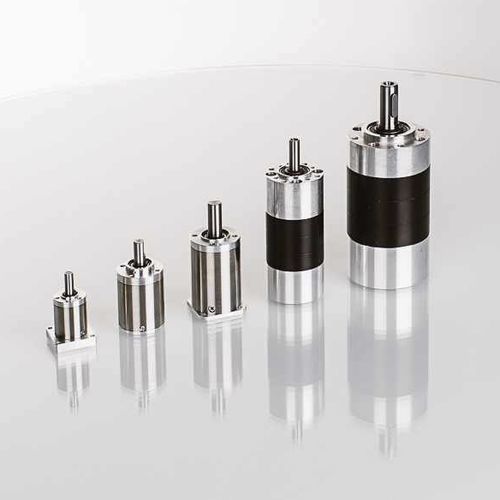

Planetary gearhead P22
coaxialsolid-shaft0.5 - 1 Nm

Planetary gearhead - P22 - ELRA Antriebstechnik Vertriebs Ges.m.b.H - coaxial / solid-shaft / 0.5 - 1 Nm
Planetary gearhead - P22 - ELRA Antriebstechnik Vertriebs Ges.m.b.H - coaxial / solid-shaft / 0.5 - 1 Nm
Add to favorites
Compare this product


Characteristics

Type
planetary
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Torque
0.5 - 1 Nm, 1 - 5 Nm, 10 - 20 Nm, 5 - 10 Nm, 20 - 50 Nm, 100 - 200 Nm, 50 - 100 Nm, 200 - 500 Nm
Number of stages
single-stage, four-stage, three-stage, two-stage
Applications
for DC motors
Other characteristics
stainless steel, aluminum
Rotational speed

Min.: 3,000 rpm
(18,849.56 rad.min-1)

Max.: 6,000 rpm
(37,699.11 rad.min-1)

Gear ratio

Min.: 3.7 unit

Max.: 307 unit

Description

Our standard planetary gearboxes are a cost-effective solution for high torque transmissions on small diameters. We offer one, two, three and even four-stage planetary gearheads, with reduction ratios up to over 4000:1. All gearheads can be combined with our stepper motors, DC motors and BLDC motors. • Metal and plastic design • Special designs possible
