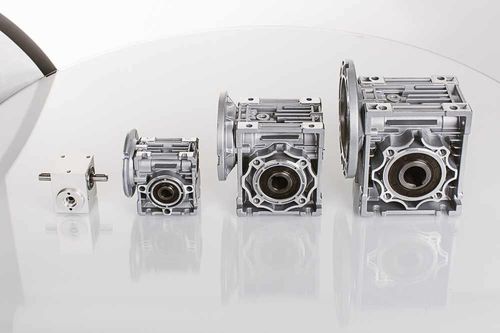

Worm gearhead SR seriesright anglehollow-shaft1 - 5 Nm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Torque
- 1 - 5 Nm
- Configuration
- miniature
- Applications
- for DC motors, for stepper motors
- Other characteristics
- stainless steel, aluminum
- Rotational speed
4,000 rpm
(25,132.74 rad.min-1)- Gear ratio
Min.: 5 unit
Max.: 4,000 unit
Description
Our product range of worm gear units includes miniature series as well as IEC-standard sizes with torque up to more than 400Nm. Optionally, spur or planetary gearheads can be integrated as preliminary stages to achieve reductions of 2000:1.
• Hollow shaft or shaft design
• Centre distance 12...90mm
• Optional with spur gear pre-stage for higher reduction ratios and better efficiency
