Liquid/liquid heat exchanger

plasticcompacthigh-performance

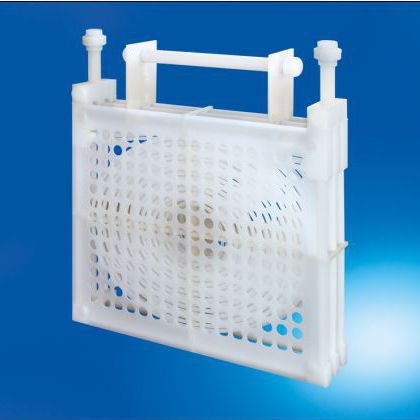

Modular Heat exchangers made of Moldflon™-PVDF, -PP or -PE are used for cooling or heating aggressive liquids in containers. They are made of individual tube modules and standardised components. The tube modules are provided with a rigid frame into which the inflow and outflow lines of the medium are integrated. The modular design enables a wide spectrum of dimensions and heat exchange surfaces to be combined in a compact and stable design. Up to 3 modules side by side and up to ten layers enable heat exchange surfaces from 0.4 m2 up to 45 m2. The position and type of brackets as well as the connection tubing can be customised to suit an individual installation.
