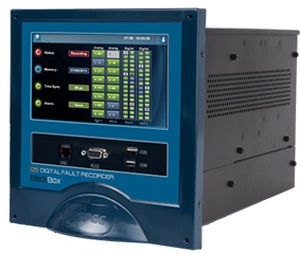

Electrical network analyzer BlackBox G5PMU

for integrationdigitaldata acquisition

The BlackBox G5PMU is a fully featured Phasor Measurement Unit (PMU) embedded with PQZIP technology. The G5DFR is a distributed multi-functional data acquisition unit that continuously records all waveform signals at sampling rate of 1,024 samples per cycle. - PQZIP inside Continuous waveform recording Trigger free setup 5,000 power parameters @ 1/2 cycle resolution Easy deployment - Superior Transmission Rate With transmission rate of up-to 200/240 frame per second (50/60Hz), the G5PMU exceed C37.118 Synchrophasor requirements for both M and P classes. - P & M Class simultaneously The G5PMU can transmit both P and M classes simultaneously at two different transmission rates to two different destinations. - Synchronized Monitoring The BLACKBox DFR’s synchronization algorithm is based on several sources with an automatic hierarchy for the preferred source availability (accuracy based hierarchy). This unique time synchronization algorithm assures that logged data from multiple units is synchronized & displayed on the same time scale with typical 1 μs resolution.
