Duct fan SLCX355/4-3axialcoolingventilation
Add to favorites
Compare this product
Characteristics
- Installation
- duct
- Configuration
- axial
- Function
- cooling, ventilation
- Supply voltage
- 400 VAC, 380VAC
- Drive mechanism
- electrically-powered
- Material
- steel
- Other characteristics
- ATEX, for chemical applications
- Air flow
0.648 m³/s, 0.716 m³/s, 0.773 m³/s, 0.821 m³/s, 0.86 m³/s
(22.884 ft³/s, 25.285 ft³/s, 27.298 ft³/s, 28.993 ft³/s, 30.371 ft³/s)- Diameter
355 mm
(13.976 in)- Rotational speed
1,360 rpm
(8,545 rad.min-1)- Noise level
49 dB, 50 dB
Description

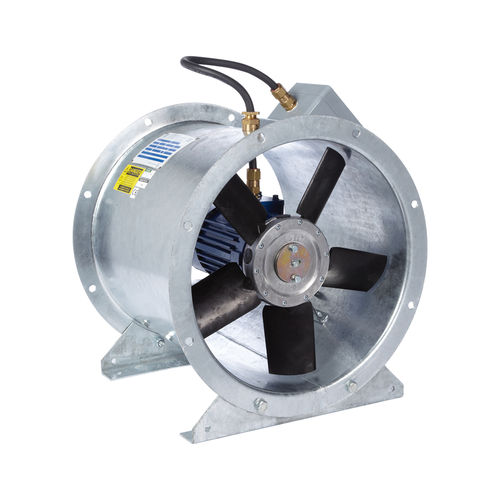

ATEX Long Cased Axial Flow Fan
ATEX Construction Code: Ex h IIB+H2 T4 Gb
• Standard size 355 mm
• Air volume flow rates up to 0.86 m3/s
• Static pressure up to 129 Pa
• Suitable for operating temperatures up to +40℃
• Suitable for extract or supply systems
• Available in AC
A range of ATEX rated duct mounted axial fans, manufactured in heavy gauge sheet steel. These units are designed to meet the requirements for Hazardous Areas with carbon filled anti-static impeller blades and protection to Ex h IIB+H2 T4 Gb.
Intelligent Design
Classified for constructional safety and the requirements stated in 2014/34/EU directive, Gas, Zone and ignition temperature protection to Ex h IIB+H2 T4 Gb.
Efficient Performance
Adjustable pitch aerofoil section impellers with blades made from high quality carbon filled anti-static material for enhanced performance. Hubs are die cast aluminium.
