Duct fan CFHT500/4-3AC

centrifugalcooling380VAC

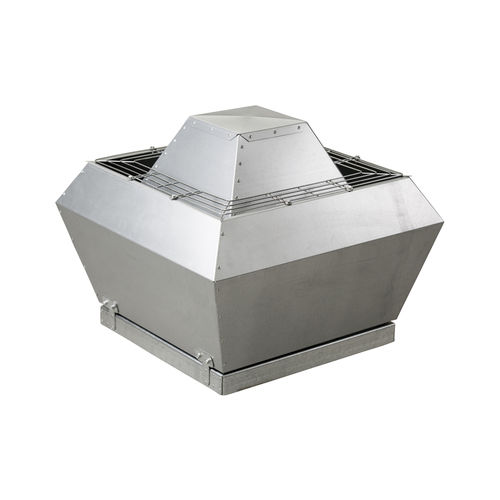

Roof Mounted Vertical Discharge Centrifugal Fan • Standard size 500mm • Air volume flow rates up to 1.886 m3/s • Static pressures up to 673 Pa • Suitable for operating temperatures of up to +120℃ • Can be mounted at angles of up to 15° • Available in AC A range of roof mounted centrifugal fans which are designed to handle clean, grease laden or contaminated air, whilst providing easy access for cleaning. High Temperature Motors are situated out of the air stream and are not effected by contaminates in the ventilated air. The range is suitable for a wide range of applications from contaminated air to elevated temperatures up to 120C. Intelligent Design Vertical discharge of air, projects odours away from potential occupied areas. Easy Installation Can be mounted at angles of up to 15 which means the fans can be fitted directly to pitched roofs. Weather Resistance Wind guard fitted as standard to reduce noise, and draughts entering the duct. Easily removable for cleaning and maintenance. Controllability The Eltadrive range of inverters has been designed encompassing the latest technology and combining robustness with reliability. Using an inverter to control fans via sensors to reduce fan speed can provide significant cost-savings through lower energy consumption.
