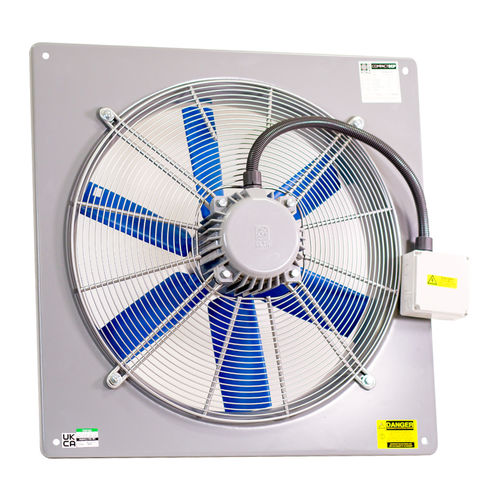

Wall-mounted fan SCP500/4-3AC

verticalhorizontalIP55

Plate Mounted Axial Flow Fan • Standard size 500mm • Air volume flow rates up to 2.639 m3/s • Static pressures up to 156 Pa • Highly efficient, lightweight induction motors • Fully speed controllable • Suitable for operating temperatures up to +70℃ (speed control +50℃) • Available in AC Featuring our high efficiency Series 1 impeller, the Compact SCP makes light work of handling large volumes of air against low resistance. The fan design, construction and finish provide a strong, durable and weatherproofed range. Intelligent Design Compact low profile design suitable for vertical or horizontal mounting. Easy Installation A fitted IP55 terminal box allows the fan to be positioned conveniently to incoming electrical inputs. Designed For Efficiency Impellers are adjustable pitch aerofoil with blades made from high quality GRP. Combined with increased blade chord and twist, we have achieved 7% higher efficiency, reducing overall energy consumption. Increased blade root reduces stress levels making our range of impellers ideal for arduous fan applications. Corrosion Resistance Specially treated against corrosion, powder coated with polyester epoxy paint. Controllability A range of transformer voltage controllers are available which provide five speed step control of single phase or three phase motors.
