Temperature data acquisition system FWS61

benchtopwirelessmultifunction

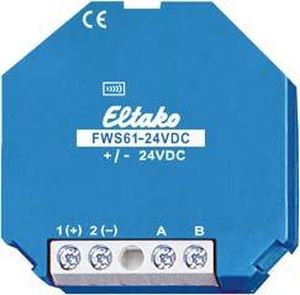

Wireless weather data transmitter module for the seven weather items sent by the multisensor MS. With internal antenna. Only 0.3 watt standby loss. For installation. 45mm long, 45mm wide, 18mm deep. Power (24V DC) is supplied by the wide-range power supply unit WNT61-24VDC/10W (33mm deep, 45mm long, 45mm wide). This switching power supply unit simultaneously supplys the multisensor MS including the heating of the rain sensor. It is possible to use a deep UP box for the two devices. This weather data transmitter module receives the seven momentary readings of the weather items: brightness (from three cardinal points), twilight, wind, rain and ambient temperature by cable J-Y (ST) Y 2x2x0,8 from the multisensor MS attached to the outside of the building. The readings are sent in the form of wireless telegrams over the Eltako wireless network with the priorities listed below. Only one MS multisensor can be connected to a wireless weather data transmitter module FWS61. However, several FWS61 can be connected to a multisensor MS. The external terminating resistor has to be present on only one FWS61. If there are other FWS61, it must be removed. The evaluation is made with a Professional Smart Home controller, the wireless multifunction sensor relay FMSR14, or the actuators FSB14 and FSB71. When the supply voltage is applied, a teach-in telegram is sent immediately and two status telegrams containing the momentary values are sent approx. 60 seconds later.
