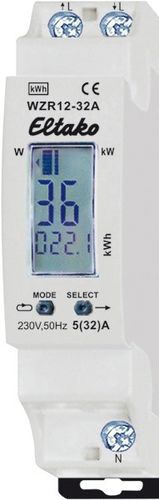

Single-phase electric energy meter WZR12-32ADIN rail
Add to favorites
Compare this product
Characteristics
- Type
- single-phase
- Assembly
- DIN rail
- Voltage
230 V
- Primary current
Max.: 32 A
Min.: 0.02 A
Description
Maximum current 32A, standby loss 0.5 watt only.
Modular device for DIN-EN 60715 TH35 rail mounting.
1 module = 18mm wide, 58mm deep.
This single-phase energy meter with reset function uses the current between input and output to measure active energy and saves the consumption parameter in a non-volatile memory.
Accuracy conforms to Class B MID (1%) like all Eltako single-phase energy meters, the inrush current is 20mA.
The display is subdivided into 3 fields.
