Touch push-button switch BPB55

ACwirelessactuator

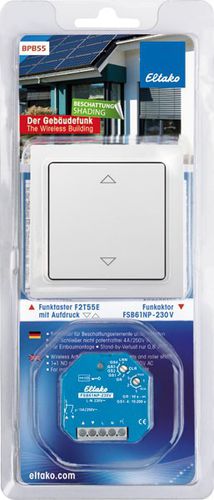

Blisterpack shading with wireless pushbutton F2T55E and wireless actuator for shading elements and roller shutters FSB61NP-230V. Smart Home sensor and Smart Home actuator. F2T55E: Wireless pushbutton pure white glossy for single mounting 80x80x15mm or mounting into the ­E-Design55. Generates the power for wireless telegrams itself when the button is pressed, therefore there is no connecting wire and no standby loss. Wireless pushbuttons with one rocker can transmit two evaluable signals: press rocker up and press rocker down. The mounting base can be screwed onto a flat surface or glued to the wall, on glass or on furniture using the enclosed adhesive foil. Use the sleeves in the 55mm socket box for screw mounting. FSB61NP-230V: Wireless actuator for shading elements and roller shutters. 1+1 NO contact not potential free 4A/250V AC, for roller blinds and shading systems. Encrypted wireless, bidirectional wireless and repeater function are switchable. Only 0.8 watt standby loss. For installation. 45mm long, 45mm wide, 33mm deep. Supply voltage, switching voltage and control voltage local 230V. If a power failure occurs, the device is switched off in a defined sequence. In addition to the wireless control input via an internal antenna, this wireless actuator can also be controlled locally by a conventional 230V control switch previously mounted.
