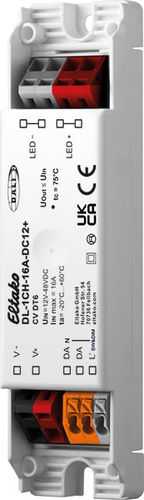

Dimmer DL-1CH-16A-DC12+

DALI2 LED 1 channel dimmer for ceiling installation. 120x30x22mm. Protection class IP20. Only 0.12 watt standby loss. DALI2 certified. DALI2 is the newest generation of the DALI standard with an extended range of functions. DALI2 devices also include all previous DALI functions and are therefore backwards compatible. Designed to control constant voltage LED modules (CV) at operating voltages of 12V to 48V, Sw&Dim or SwitchDim2: Operating via 1 or 2 pushbutton inputs permits brightness control without DALI. Alternatively, corridor function for direct activation with a motion detector. Dimming range 0.1%-100%. Selectable PWM frequency (122Hz/244Hz/488Hz/976Hz). Supply voltage 12V to 48V DC.·Max. connected current 16A. High efficiency. Configuration via DALI Cockpit PC software and DALI USB interface. Operating modes: The output channel is controlled by a DALI address (Device Type 6). Alternatively, it can also be operated by one (Sw&Dim) or two pushbutton inputs (SwitchDim2). SwD1, Sw&Dim: brightness. Press pushbutton briefly: On/Off. Press pushbutton long: Dim. SwD2: Scene switch (press pushbutton briefly). If you press the SwD1 input for 2 minutes, the mode changes to Corridor function. This operating mode remains enabled until the device is disconnected from the power supply (after PowerUp: operation via SwD1/SwD2).
