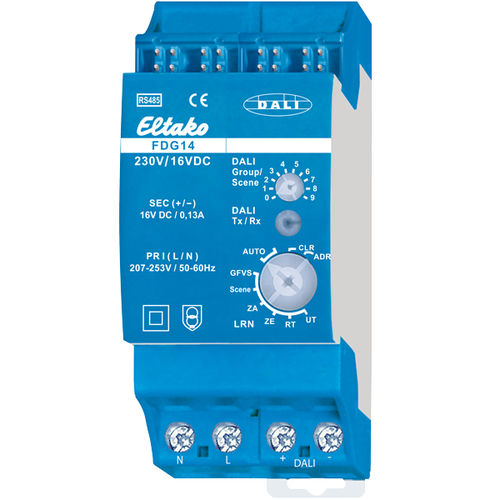

Communication gateway FDG14

wirelessDALIDIN rail

RS485 bus DALI gateway for DIN-EN 60715 TH35 rail mounting, bidirectional. Only 1 watt standby loss. Modular device for DIN-EN 60715 TH35 rail mounting. 2 modules = 36mm wide, 58mm deep. Connection to the Eltako-RS485 bus. Bus cross wiring and power supply with jumper. Operation in conjunction with FAM14. Power supply 230V at terminals N and L. 16V DC/130mA can be connected to the DALI terminals +/- for up to 64 DALI devices. The gateway FDG14 controls DALI devices with EnOcean wireless transmitters via the FAM14. As of production week 14/16 Groups 0-15 can be controlled and the broadcast command can be sent. In addition DALI scenes 0-15 can be controlled. DALI installations, which are to be fully controlled with the FDG14, must be configured in groups 0-15. FDG14 internally saves the dimming value for each of the groups 0-15 and supplies this value as feedback. The same feedback telegrams are generated as for an FUD14. The FDG14 occupies 16 BR14 device addresses. The feedbacks of the device addresses correspond to the dimming values of the DALI groups 0-15 in ascending order. Feedbacks can be converted by the PCT14 for each individual group of dimming value telegrams (%) to pushbutton telegrams (ON/OFF). Feedbacks can then control BR14 actuators. The FDG14 fulfils the function of the DALI master and the DALI power supply. The rotary switches can only teach in pushbuttons for groups 0-8 and DALI scenes 0-9.
