Distribution transformer
immersedthree-phasepad-mount

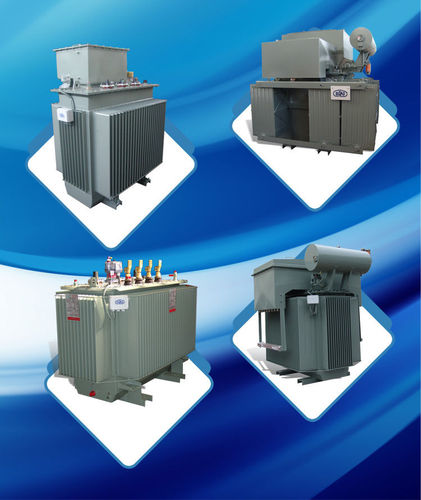

Distribution transformer - ELTAŞ TRANSFORMATOR San. ve Tic. A.S. - immersed / three-phase / pad-mount

Distribution transformer - ELTAŞ TRANSFORMATOR San. ve Tic. A.S. - immersed / three-phase / pad-mount - image - 2

Distribution transformer - ELTAŞ TRANSFORMATOR San. ve Tic. A.S. - immersed / three-phase / pad-mount - image - 3

Distribution transformer - ELTAŞ TRANSFORMATOR San. ve Tic. A.S. - immersed / three-phase / pad-mount - image - 4

Add to favorites

Compare this product

Characteristics

Type

distribution

Configuration

immersed

Electrical characteristics

three-phase

Mounting

pad-mount

Other characteristics

oil-filled

Electric power

Max.: 40,000 kVA
(54,384.8462 hp)

Min.: 5,000 kVA
(6,798.1058 hp)

Description

GENERAL SPECIFICATIONS Power transformers are the transformers equal or higher than 4MVA. ELTAS A.S produces power transformers between 4000kVA -40000 kVA and both low and high voltage side of which are 3.3 kV-66kV. Power transformers are ordered as single phase or three-phase. ELTAS A.S use uninhibited or inhibited mineral oil for productions. If requested, non-flammable fluids are used. Power transformers are produced by the following cooling systems; ONAN (oil-natural air –natural)  ONAF (oil-natural air forced -fan) Power transformers are available open to atmosphere with conservator or with gas cushion Power transformers are produced with off load tap changer at idle status or on-load tap changer. Power transformers are produced with cable box or protection box. Power transformers are produced with porcelain isolators or epoxy resin isolators. The purpose of ELTAS A.S is to meet the customer requirements perfectly and offer high quality to the customer. ELTAS A.S produces power transformers in accordance with customer requests, terms of contract and technical standards (TS 267 EN 60076-1 IEC 60076-1, BS 171, DIN, ANSI, ENEL, ENDOSA, CSA vb.).
