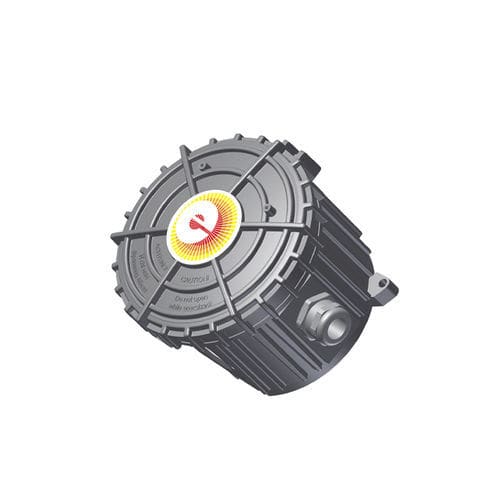

Hazardous area junction box ELAK-Ex-R series
wall-mountedexplosion-proofATEX

Hazardous area junction box - ELAK-Ex-R series - Eltherm - wall-mounted / explosion-proof / ATEX
Hazardous area junction box - ELAK-Ex-R series - Eltherm - wall-mounted / explosion-proof / ATEX
Add to favorites
Compare this product


Characteristics

Mounting
wall-mounted
Protection level
explosion-proof, ATEX, IP65
Material
polyamide
Applications
for hazardous areas, for explosive atmospheres
Length / diameter

150 mm
(5.9 in)

Depth

125 mm
(4.92 in)

Description

The innovative junction box ELAK-Ex-R is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines 94/9/CE (ATEX 95). Thanks to its exceptional shape it provides a number of advantages. Due to the form of the box, for instance, it is not necessary to strongly bend the inserted cable thereby avoiding cable damage. A safety lock, with appropriate tool included, prevents the cover from moving. Additional features permitting the attachment of sign plates facilitate easy identification of heating circuits in complex systems. Suited for wall-mounting. Applications -Chemistry and Petrochemistry -Industrial Applications -Power plants -Freeze prevention -Temperature maintenance Technical Benefits -No static charge -Rapid closing of the cover through snap fit, no tool required -Increased mechanical safety through round shape -Permits fixing of customer identification plates -Up to three heating cables can be connected
