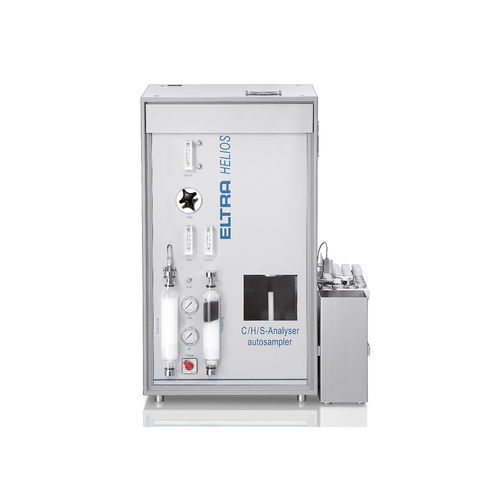

Sulfur analyzer CHS‑580A

carbonhydrogenmonitoring

ELTRA‘s CHS-580A is the ideal elemental analyzer for simultaneous determination of carbon, hydrogen and sulfur in organic samples. It features a resistance furnace with vertical ceramic tube and uses ceramic crucibles as sample carriers. An automatic sample loader allows for analysis of large numbers of samples without operator intervention. The sample loader is available in two versions to accommodate 36 or 130 crucibles. For reliable analysis of acidified samples (TOC analysis), both versions are available in an acid-resistance configuration. The temperature can be set in steps of 1 °C to a maximum of 1,550 °C. Thanks to sample weights of up to 500 mg and more even inhomogeneous materials can be reliably analyzed. The analyzer can be equipped with up to four independent infrared cells for measuring carbon and sulfur concentrations, allowing for a great variety of applications. Benefits CHS‑580A Fast & simultaneous elemental analysis of C, H, S, TOC and TIC Configurable for single element (C or S) or multi-element (C/S or C/H/S) analysis Wide concentration range from 0.005 – 100 % High weights possible for elemental analysis of heterogeneous samples Optional autoloader with 36 or 130 positions (acid-resistant version available) Operation of the CHS-580 A elemental analyzer is simple, fast and convenient. The samples are weighed and registered in the software as manual analysis or analysis via autoloader
