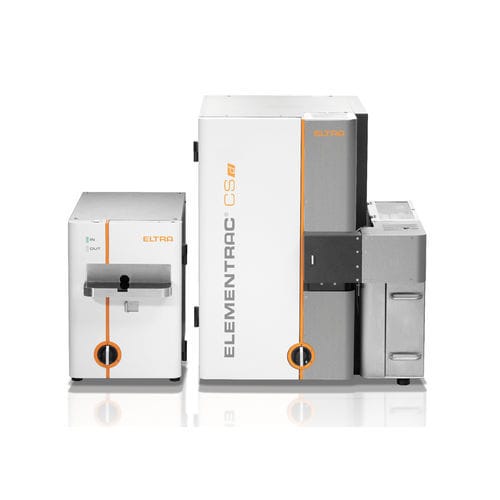

Sulfur analyzer ELEMENTRAC CS-d

carbonlaboratoryelemental

ELTRA's ELEMENTRAC CS-d is the only analyzer in the market for determination of carbon and sulfur in organic as well as inorganic samples. For this purpose, the ELEMENTRAC CS-d is equipped with both an induction and a resistance furnace (ELTRA Dual Furnace Technology), covering the full range of carbon and sulfur analysis. Up to four highly sensitive infrared (IR) cells allow for precise measurement of both high and low carbon and sulfur concentrations in only one analysis. The measuring range of each cell may be adapted to the user's specific requirements to ensure optimum measurement conditions for each application. The ELEMENTRAC CS-d is supplied with the comprehensive and user-friendly ELEMENTS software. Full Flexibility With Two Furnaces Full flexibility due to combined induction and resistance furnace: ELTRA Dual Furnace (EDF) Technology Rapid and accurate carbon & sulfur analysis in inorganic and organic samples Up to four independent infrared cells with flexible measuring ranges Gold IR path allows for increased cell lifetime for analysis of halogen- or acid-containing samples Simultaneous carbon and sulfur determination with minimum sample preparation Robust design allows usage in production control and laboratory Operation and Analysis Process Operation of the ELEMENTRAC CS-d is easy and convenient and only requires a few steps. The typical sample weight for carbon / sulfur analysis is about 50 to 1000 mg.
