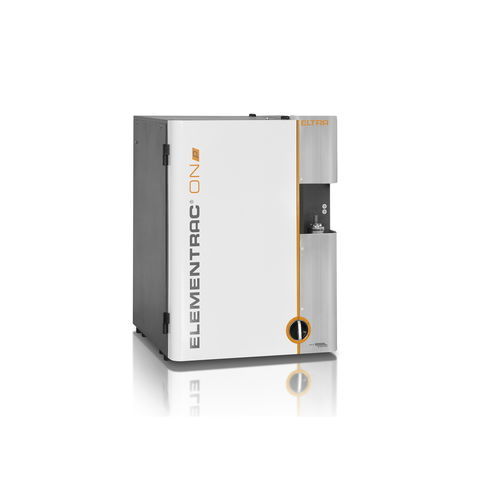

Oxygen analyzer ELEMENTRAC ON‑p 2

nitrogenorganic matterlaboratory

The new ELEMENTRAC ON-p 2 is a powerful and robust elemental analyzer for measurement of oxygen and nitrogen concentrations in inorganic materials like steel, iron, copper or ceramics. The highly sensitive NDIR and thermal conductivity detectors reliably detect element concentrations from low ppm content to high percentages. The innovative sample port system with pulsed chamber rinsing and vertical sample drop allow for user-friendly and comfortable analysis of rod-shaped, granular or powdery samples with a weight of up to 2 grams. The ELEMENTRAC ON-p 2 elemental analyzer meets or exceeds the requirements of all relevant international standards such as ASTM E 1019 or DIN EN 3976. Oxygen / Nitrogen Analyzer ELEMENTRAC ON-p 2 Low gas consumption and high sensitivity due to closed gas system Easy application of pins, powders and granules Inexpensive argon as carrier gas possible Short analysis time Powerful impulse furnace with 8.5 kW Optional Autocleaner Reliable ON elemental analysis of inorganic samples like steel, non-ferrous metals, ceramics, slags, ores, etc. Oxygen / Nitrogen Analyzer ELEMENTRAC ON-p 2 Operation and Analysis Process Step 1: Logging the sample into the ELEMENTS software The sample ID is logged into the software and the weight is automatically transferred (see step 2). Step 2: Weighing and introduction of sample into the port The ELEMENTRAC ON-p 2 analyzes volumes from a few mg up to 2 grams safely and precisely. Rod-shaped or granular samples can be applied directly. For the elemental analysis of powders, a capsule is recommended which does not have to be sealed.
