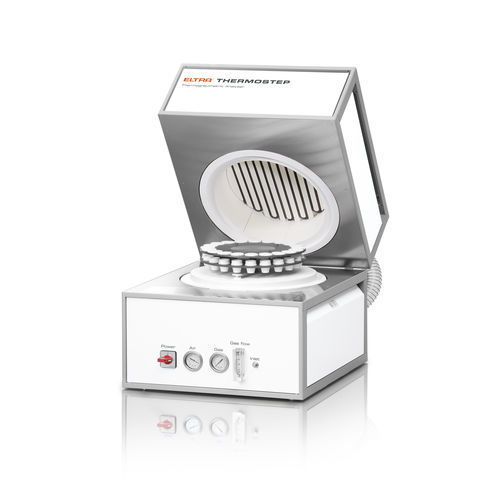

Organic matter analyzer TGA THERMOSTEP

carbonprocessbenchtop

Thermogravimetry is a standard method to analyze organic, inorganic and synthetic materials. Thermogravimetric analysis in general means the measurement of the weight loss during a user-defined temperature or heating process. ELTRA’s TGA Thermostep is a thermogravimetric analyzer which determines various parameters such as moisture, volatiles and ash at user-defined temperatures and atmospheres in a single analysis. The thermogravimetrics analyzer TGA Thermostep simultaneously analyzes up to 19 samples with sample weights up to 5 g and can be operated at temperatures up to 1000 °C. A special feature of the TGA Thermostep is the management of crucible covers. The thermogravimetric analyzer can place and remove the covers of the crucibles during analysis. This feature allows for example the precise determination of volatile content in coal and coke. Benefits Measurement of up to 19 samples in one analysis Sample weights of up to 5 g Fast heating rates, accurate temperature control High-performance, precise weighing cell Automatic placing and lifting of crucible covers Robust design allows for use in laboratories and production The TGA Thermostep processes up to 19 different samples, typically weighing between 500 mg and 5 g, in one analysis cycle. The surrounding atmosphere and temperature of up to 1,000 °C within the heating chamber can be freely defined by the user during analysis to create a standard operating procedure. The crucible lids, covering of the samples, can be raised or lowered at each stage of the analysis, thus allowing for safe and ASTM-compliant determination of volatiles in coal samples.
