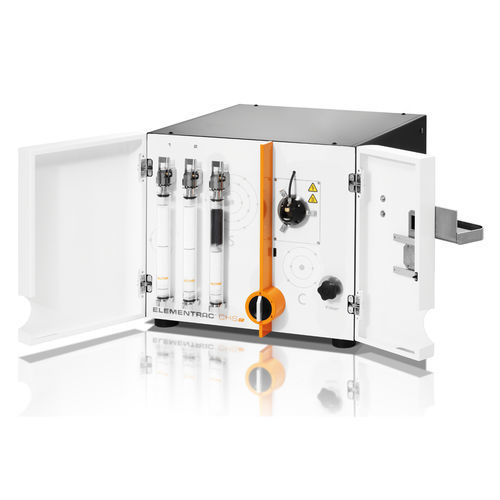

Hydrogen analyzer ELEMENTRAC CHS‑r

sulfurcarbonlaboratory

For the safe, precise and reliable analysis of carbon (C), sulfur (S) and hydrogen (H) in predominantly organic matrices such as soils, waste, wood, oil, coal and coke, ELTRA offers the elemental analyzers ELEMENTRAC CHS-r with IR detection. The CHS-r with up to 3 infrared cells is designed for carbon, sulfur and hydrogen measurement over a very wide concentration range. It uses a horizontal resistance furnace with ceramic tube, which operates in a range from 600 °C to 1550 °C. The CHS-r combustion analyzer meets or exceeds the requirements of all common ASTM, DIN, EN or ISO standards for elemental analysis. arbon / Sulfur Analyzer ELEMENTRAC CHS-r Fast, simultaneous measurement of carbon, sulfur and hydrogen High sample weight possible Optimized (low blank) sample port IR path made of solid gold for extended lifetime Wide measuring range from 20 ppm to 100% Operation and Analysis Process The ELEMENTRAC CHS-r elemental analyzer determines the elements carbon, sulfur and hydrogen by combustion of the sample in an oxygen stream and subsequent measurement of the combustion gases CO2, SO2 and H2O in selective infrared measuring cells. A high sample weight of up to 500 mg ensures excellent reproducibility of the measurement results, even for heterogeneous samples.
