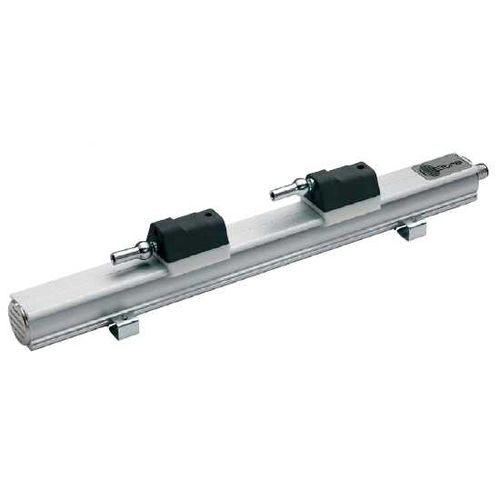

Absolute magnetostrictive position sensor EMSPAlinearnon-contactmagnetostrictive
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Contact / non-contact
- non-contact
- Technology
- magnetostrictive, absolute magnetostrictive, mechanical
- Output signal
- analog
- Protection class
- IP67
- Other characteristics
- compact, rugged, precision
- Measuring range
Max.: 1,500 mm
(59.06 in)Min.: 50 mm
(1.97 in)- Linearity
0.04 %
- Ambient temperature
Max.: 70 °C
(158 °F)Min.: -30 °C
(-22 °F)
Description
EMSPA absolute linear magnetostrictive transducer with analog interface.Thanks to the absence of electric contact on the enclosure there is no issue of wear and deterioration during working life. Magnetostrictive technology guarantees great performances of speed and precision. High reliability and simple installation even for applications with mechanical stresses, shocks or high contamination are assured by the compact size and the rugged enclosure.
Catalogs
EMSPA
3 Pages
