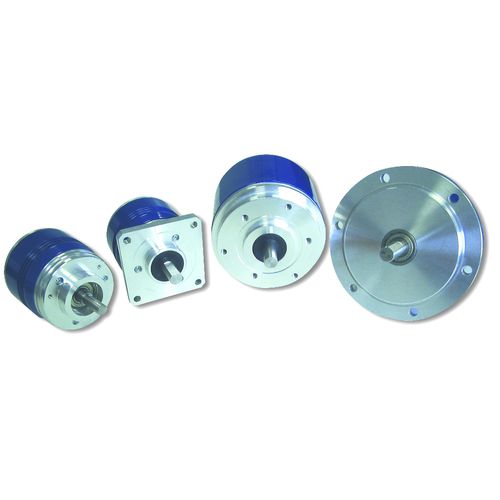

Absolute rotary encoder EA 90-115optical13-bitsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- optical
- Absolute encoder resolution
- 13-bit
- Construction
- solid-shaft, single-turn
- Output signal
- parallel, with SSI interface
- Protection level
- IP66
- Applications
- industrial
- Housing diameter
90 mm, 115 mm
(3.54 in, 4.53 in)- Shaft diameter
11 mm
(0.43 in)- Output frequency
Min.: 25 kHz
Max.: 1,000 kHz
- Process temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)
Description
Solid shaft EA 90 - EA 115 (ø 90-115 mm) series of optical singleturn absolute encoders, with Bit parallel or SSI electronics. This series has cable connector output and protection class up to IP 66; Gray and binary code output with several electronics are available to allow a broad use in all industry fields. EA90 EA115
