Temperature sensor module EPM2M-SM-IO

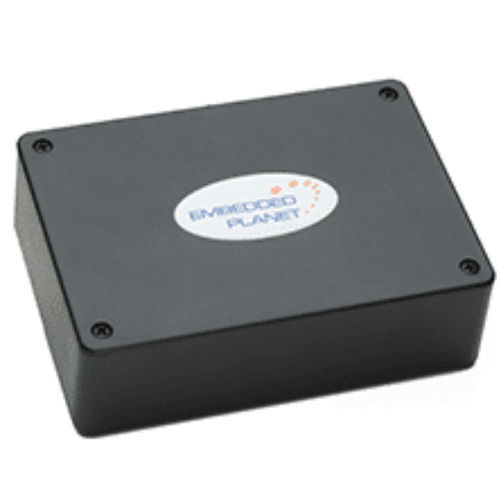

The EPM2M-SM-IO Sensor Module is an industrial grade wireless sensor for Linear Technology / Dust Networks SmartMesh IP based wireless sensor networks. SmartMesh IP is built for IP compatibility and is based on 6LoWPAN and 802.15.4e standards. The EPM2M-SM-IO provides an easy to use, seamless connection between physical sensing world and the EPM2MSM- IP Gateway using Smartmesh IP. The EPM2M-SM-IO includes sensors for light, pressure, accelerometer, humidity and temperature. By leveraging SmartMesh IP, Embedded Planet has created a complete wireless sensor solution which provides low power consumption and can be use in harsh and challenging RF environments. The EPM2M-SM-IO uses the ARM Cortex M3 processor inside the SmartMesh IP module to minimize space and save power. Sensor Processing code runs using the standard on-chip SDK. The EPM2MSM- IO sensors connect seamlessly to the EPM2M-SM-IP Gateway to allow IPv6 / 6LoWPAN access from a secure device directly to the EM2MSM- IO sensor. The Low Power Design fits comfortably in a 4″ x 3″ x 1″ Enclosure, and requires no additional Host CPU for processing. Features Temperature: 12 / 14 bit resolution; Measurement time at 14 bit is 50 ms max Humidity: 8 / 12 bit resolution; measurement time at 12 bit is 16 ms max Pressure: Less than 1 foot / 0.3 m resolution Pressure range: 20 – 110 kPa Compensated, direct reading (software is not needed): 20-bit pressure measurement (Pascals) 20-bit altitude measurement (meters)
