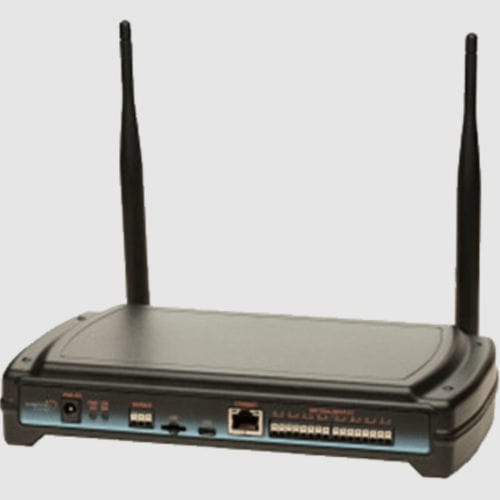

Industrial gateway EPM2M-SM-IP

wirelessEthernetIP

The EPM2M-SM-IP Manager for Smartmesh IP radios is an industrial grade cellular gateway for Analog Devices SmartMesh IP based wireless sensor networks. SmartMesh IP is built for IP compatibility and is based on 6LoWPAN and 802.15.4e standards. The EPM2M-SM-IP provides an easy to use, seamless connection between any Smartmesh IP based wireless mesh network and the Internet via cellular, Ethernet or Wi-Fi. The EPM2M-SM-IP includes optional plans for AT&T and Verizon cellular services and cloud based data access. Embedded Planet can provide a complete end-to-end solution from sensor to cloud visualization for your sensor data. This will allow any OEM to provide a seamless interface for equipment support. Features SmartMesh IP: SmartMesh IP Manager with 32 or 100 motes supported Data Plan: Monthly plans available for AT&T and Verizon Cloud Data: Optional plans for cloud based data access via cellular, Ethernet or Wi-Fi. Cellular: Telit LTE; includes GPS; PTCRB Certified, FCC Certified Wi-Fi: 802.11 a/b/g, FCC Certified I/O : Modbus, Digital and Analog Ethernet: Ethernet – 1 x 10 /100 Enclosure and Antenna: Indoor or Outdoor, Flexible Antenna Options Power: Standard 5V power supply, Battery Power Optional Software: U-Boot Firmware and Linux support, Gateway configuration via web access, additional features include database access, alarming, logging and diagnostics
