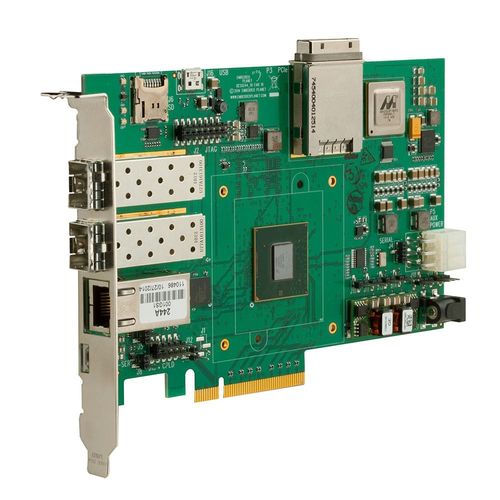

PCIe CPU board EPT2080E

NXPRJ45embedded

The EPT2080E PCIe board is a cost-effective and powerful platform for developing high performance networked control platforms. The board will fit into standard PCIe slots or run standalone, while 1 Gigabit Ethernet, 1 serial port (via USB) and 1 USB port provide the necessary I/O. At the heart of the EPT2080E is the NXP QorIQ T2080. The T2080 is a highly integrated SoC that includes up to 4 e6500 cores at speeds up to 1.8GHz, a floating point unit, flash controller, DDR3L RAM controller, USB 2.0 host and device controllers. The high level of integration increases performance, while lowering system power consumption and cost. Target Applications: Single Board Computer Ethernet Switch Machine Vision and Camera Industrial Robotics The EPT2080E PCIe board is a cost-effective and powerful platform for developing high performance networked control platforms. The board will fit into standard PCIe slots or run standalone, while 2 10Gigabit Ethernet ports via SFP+ cages, 1 Gigabit Ethernet, 1 serial port (via USB) and 1 USB port provide the necessary I/O. At the heart of the EPT2080E is the NXP QorIQ T2080. The T2080 is a highly integrated SoC that includes up to 4 e6500 cores at speeds up to 1.8GHz, a floating point unit, flash controller, DDR3L RAM controller, USB 2.0 host and device controllers, and multiple 10Gigabit Ethernet MACs. The high level of integration increases performance, while lowering system power consumption and cost. The board is supported by the U-Boot bootloader and BSPs for Linux, VxWorks, and Green Hills INTEGRITY Features Runs as a standalone development board! Runs as a standalone development board!
