3.5" single-board computer EPT1020xS
NXP QorIQ™Linuxgigabit Ethernet

3.5" single-board computer - EPT1020xS - Embedded Planet - NXP QorIQ™ / Linux / gigabit Ethernet
3.5" single-board computer - EPT1020xS - Embedded Planet - NXP QorIQ™ / Linux / gigabit Ethernet
Add to favorites
Compare this product


Characteristics

Form factor
3.5"
Processor
NXP QorIQ™
Operating system
Linux
Connectivity
gigabit Ethernet, USB 2.0
Other characteristics
industrial, compact, fanless
Processor frequency

1.4 GHz

Memory size

256 MB

Description

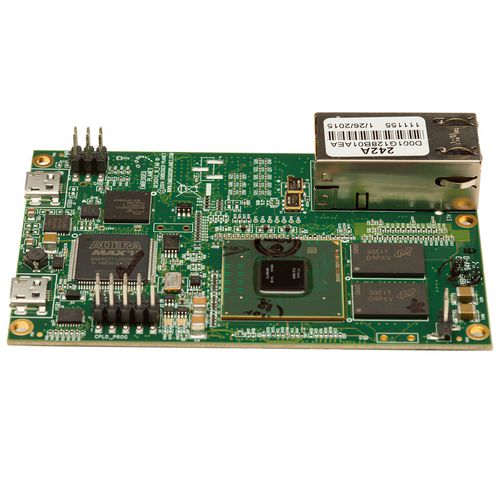

The EPT1020xS is a compact, cost-effective, and powerful platform for developing high performance network and control applications including UAVs, imaging and industrial machine control. At only 3.5″ x 2.2″ x 0.9″, the board will fit into compact spaces, while the USB port (via USB), and 1 Gigabit Ethernet port plus the EBC connector provide the necessary control I/O. The External Bus Connector (EBC) provides direct access to the T1020 interfaces including SERDES, Ethernet and 1588. This high-speed compact interface will handle demanding applications. At the heart of the EPT1020xS is the NXP QorIQ T1020. The T1020 is a highly integrated SoC that includes up to four e5500 cores at speeds of up to 1.4GHz, dual floating point units, a flash controller, DDR3L RAM controller, USB 2.0 host and device controllers, and dual Gigabit Ethernet MACs. The high level of integration increases performance, while lowering system power consumption and cost. The board stack is supported by the U-Boot bootloader and BSPs for Linux, VxWorks, and Green Hills INTEGRITY. Features Runs as a standalone development board! Processor: NXPQorIQ T1020 running at up to 1.4GHz External Bus Connector (EBC): Direct access to SERDES, Clocks (SERDES, System, Ethernet), 1588, TSEC, USB, UARTs, GPIO, I2C, Flash and Power Ethernet: 1 Gigabit port (additional via I/O board) I2C Devices: EEPROM and Battery Backed Real Time Clock
