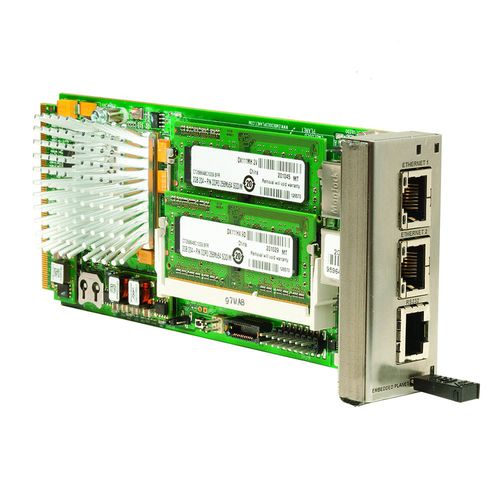

AdvancedMC single-board computer EP4080A

PowerPCNXP QorIQ™PCI Express

The EP4080A is a single width, full-height AMC processor board featuring the high performance NXP QorIQ P4080 eight core PowerPC processor Target Applications: Base Station Controllers Radio Network Controllers Consumer Routers IEEE 1588 Connectivity Media Gateways Military Embedded Systems The EP4080A is a single width, full-height AMC processor board featuring the high performance NXP QorIQ P4080 eight core PowerPC processor operating at up to 1.5GHz. The highly integrated multi-core processor makes the EP4080A a natural fit for combined control and data plane applications on a single board, thereby reducing system cost and power consumption. With broad operating support, the EP4080A is built for a broad range of demanding applications in wireless basestations, media gateways, enterprise network access systems, test and measurement systems, and server blades. Suitable for MicroTCA and ATCA applications. For fabric connectivity the EP4080A offers extreme flexibility, while maintaining standards compliance. All versions of the board support gigabit Ethernet on AMC channels 0 an 1, compliant with AMC.2, Type E2. The fat pipe region of the AMC (channels 4 – 11) can be configured on a build basis to support 10G Ethernet XAUI, Gen 2 PCI express, and SRIO. At the heart of the EP4080A is a NXP QorIQ P4080 eight-core PowerPC processor. The P4080 is a highly integrated system-onchip (SoC) platform that includes eight e500 PowerPC cores, an integrated security engine, integrated Gen 2 PCI Express, Serial
