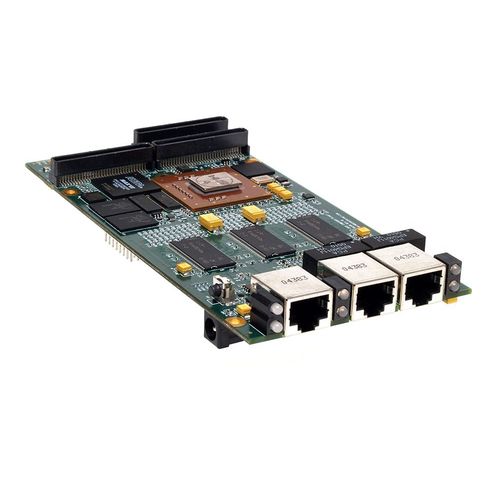

PowerPC single-board computer EP85xxM

NXPCompactPCIRJ45

The EP85xxM uses NXP’s PowerQUICC III processors, (MPC8540, MPC8541E, MPC8555E, or MPC8560) to create a configurable, full featured PrPMC board targeted at rapid development of networking and telecommunication applications. The EP85xxM uses NXP’s PowerQUICC III processors, (MPC8540, MPC8541E, MPC8555E, or MPC8560) to create a configurable, full featured PrPMC board targeted at rapid development of networking and telecommunication applications. The board can operate in a standalone mode to rapidly prototype applications and then be deployed as a PrPMC board on a CompactPCI carrier board. The MPC85xx PowerQUICC III family of processors from NXP Semiconductor features an integrated e500 PowerPC core and Communications Processor Module (CPM) to provide a scalable computing solution for networked devices. The PowerPC core can run at speeds of up to 833MHz and provide general purpose control plane functionality, while the dedicated CPM offloads communications functions such as Gigabit Ethernet, HDLC protocols, and ATM. In addition the MPC8541E and MPC8555E feature integrated security engines to accelerate processing of encryption algorithms such as DES, 3DES, MD-5, SHA-1, AES and ARC-4, as well as offering a public key accelerator and on-chip random number generator. Like all Embedded Planet products, the EP85xxM can be custom configured to meet your requirements, is volume production ready, and includes numerous OS options and firmware support. Features Runs as a standalone development board! Processor: NXP PowerQUICC III MPC8540, MPC8541E, MPC8555E, or MPC8560
