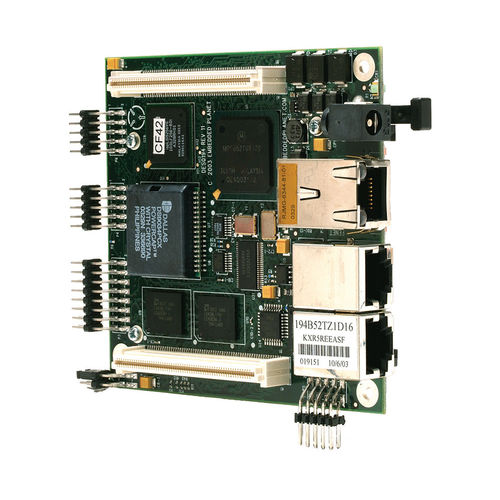

PowerPC single-board computer EP 852

NXPRJ45RS-232

The EP 852 single board computers take advantage of the high performance networking capabilities of the Motorola PowerPC MPC852 processor. The EP 852 single board computers take advantage of the high performance networking capabilities of the Motorola PowerPC MPC852 processor. By integrating all o f the features of the PowerQUICC technology onto one single board, the computing engines reduce Time-To-Market and increase product reliability. Scaleable in size, flexible in configuration, and expandable through the expansion bus they provide a production-ready platform for designing, developing, and deploying your network ready OEM design. Available in a Board Development Kit and in production quantities. Features Runs as a standalone development board! Serial Ports: 2 x RS-2323 to front panel Expansion: PCMCIA Single Type I, II, or III slot, RPX Bus for direct access to processor signals I2C Devices: EEPROM, Temperature Sensor Power Supply: 5.0 to 3.3 VDC single power supply Form Factor: 3.775” x 3.55” Debug: COP/JTAG
