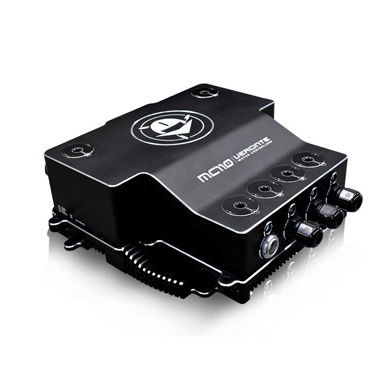

3-phase motor controller Veronte MC110

permanent magnetRS-232

Veronte Motor Controller MC110 has been specifically designed for eVTOL aircraft, being capable of driving any type of 3-phase PMSM motor. The DO178C and DO254 compliance provides all the reliability evidence needed for certification and UAM applications. The Veronte Motor Controller MC110 is designed for high voltage operations up to 550V and currents up to 200A so eVTOL endurance can be optimized. The rugged aluminum enclosure in Veronte MC110 provides EMI and IP68 waterproof protection, allowing the operation under rain and extreme humidity environments. The configuration display permits to set up dozens of parameters for adjusting the ESC performance to the eVTOL configuration (accelerations, poles, RPM…) no matter if it is for the control of a multirotor, plane or hybrid configuration. Following the philosophy in the Veronte Ecosystem, MC110 works with electric motors of any brand and any size, sensored or sensorless. Thus, professional ESC is the perfect tool for large platforms (eVTOL, multirotor, UAV, UGV…). In addition, hardware customization services are available for optimizing system performance to the whole setup.
