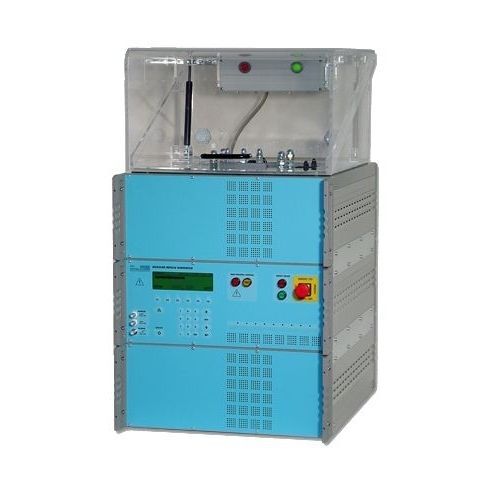

Current impulse tester MIG0612T-K12surge protection device
Add to favorites
Compare this product
Characteristics
- Test type
- current impulse
- Tested product
- surge protection device
Description
Designed for testing telecom surge protection devices according to ITU-T K12. The generator has two indepedent impulse outputs which allow testing of two and three terminal protection devices such as gas discharge tubes (GDT). The generator can be configured for two terminal devices or with the outputs in parallel to increase the current impulse for two terminal devices. Impulses avaiable from MIG0612T-K12 are: 10/1000µs, 2x 60A, 100/1000µs, 2x 1000A, 8/20µs, 2x 6000A, 40/350µs (10/350µs), 2x 2200A.
Catalogs
Telecom Test System
16 Pages
