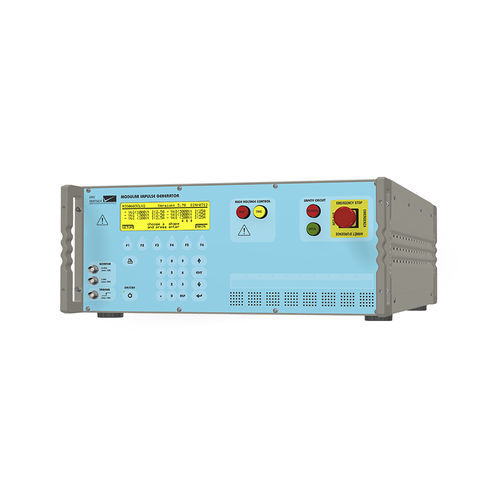

Current impulse tester MIG0603CLV1

for varistor

Multiple meausrement ranges ensure a highly accurate varistor clamping assessment up to 200A. For use with SMD or radial varistors. MIG0603CLV1 is specially designed for testing varistors with clamping voltages to 1000 V. The 8/20 us current impulse impedance changes based on selected Ip current. 11 measurement ranges are user selectable to ensure the most accurate impulse measurements. The 8/20μs current waveform up to 200A is maintained over the entire load range. Peak output voltage and current are indicated on the display. The two BNC monitor outputs allow voltage and current wave shapes to be displayed on an oscilloscope. Your Benefits ◦ 8/20 us current impulse ◦ Impulse range 0.5 to 200 A ◦ User programmable clamping voltage ◦ 11 measurement ranges ◦ Semiconductor high voltage switching ◦ Accurate clamping voltage assessment
