Current impulse tester MIG1248for varistor
Add to favorites
Compare this product
Characteristics
- Test type
- current impulse
- Tested product
- for varistor
Description

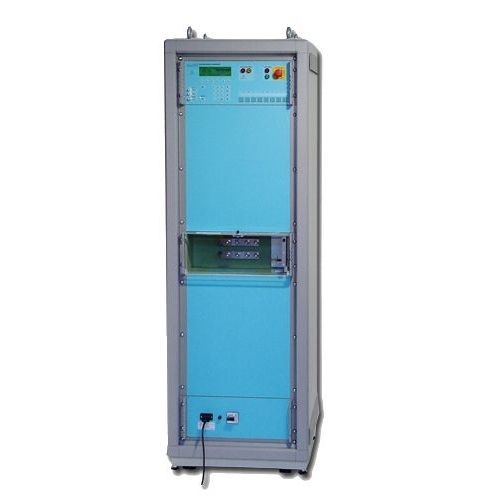

The MIG1248 is a current generator with wave shape 8/20. Maximum impulse current is up to 48kA supported by a 12kV impulse voltage making the MIg1248 ideal for testing large varistors. An intergrated test cabinet can accomodate test components up to 5cm cube. The peak output voltage and current are indicated on the front display. The two BNC monitor outputs (v,i) allow monitoring the voltage and current wave shapes on an oscilloscope.
Your Benefits
• Integrated test cabinet
• Strong wheels for easy movement
• Semiconductor high voltage circuits
• High reliability.
