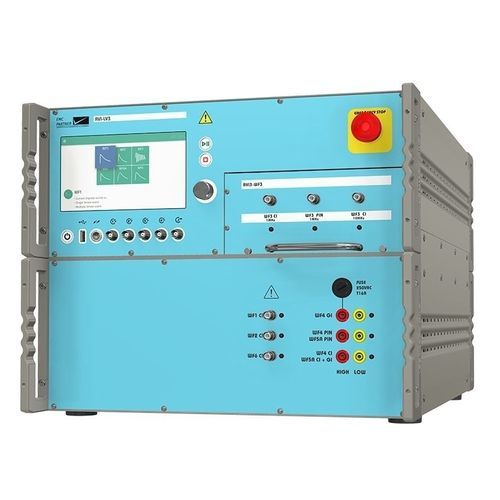

Pulse voltage generator AVI-LV3

compactburstfor immunity test

Indirect lightning impulses for PIN injection, cable induction and ground injection. Single stroke, multiple stroke and multiple burst events. DO-160 & EUROCAE ED 14 level 3 and MIL-STD-461 internal level events. AVI-LV3 is the latest evolution from a long line of highly successful indirect lightning generators. Offering state-of-the-art technology and incorporating over 25 years experience, AVI-LV3 is the most compact fully compliant test solution for DO-160, EUROCAE ED14 and MIL-STD-461. Level 3 / internal test levels are achieved under all load conditions using a single coupler. Waveforms 1, 2, 3, 4, 5A and 6 can be applied as PIN injection, single stroke and multiple stroke events as appropriate. Test routines are easily programmed on the AVI-LV3 colour touch panel. graphic and pop-up help features guide the user during test setup. The single turn large aperture coupler simplifies the test setup and helps eliminate errors. Complimented by the TEMA3000 software suite, AVI-LV3 is truly remarkable and deserves the accolade best in class. Your Benefits • PIN injection and cable bundle testing • All 6 waveforms in one unit • Single stroke, multiple stroke and multiple burst events • Phase angle synchronisation to 800Hz • Integrated AC/DC decouplers for powered PIN testing • Compact unit for on-site testing • No need to change generator or coupler • More efficient testing with less user intervention • Full compliance testing without additional hardware • Increased system availability, higher throughput
