Pulse voltage generator MIG1206 current impulsedigitalfor immunity test
Add to favorites
Compare this product
Characteristics
- Type
- pulse voltage, current impulse
- Other characteristics
- digital
- Applications
- for immunity test
Description

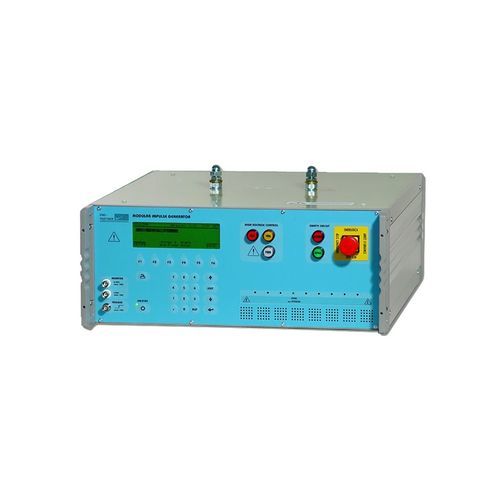

The MIG1206 is a combination wave generator (1.2/50 and 8/20) with maximum output 12kV/6kA. The impulse is according to IEC 61000-4-5 and can be used together with the Coupling Decoupling Network CDN-MIG12-32 to superimpose impulses onto power lines. The peak output voltage and current of the generator are indicated on the display. Two BNC monitor outputs allow monitoring of the voltage and current wave shapes on an oscilloscope.
Your Benefits
• Electronic polarity change
• Parameter ramp feature
• High degree of automation without software
