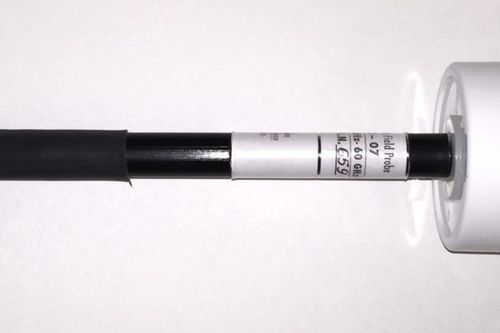

Electrical field probe PI-07

isotropicmicrowavemeasurement

Ultrabroadband isotropic electric field probe PI-07 extends the requirements of most EMC and RF safety standards for industrial, military and communication applications. It covers all RF and microwave frequency bands from MF up to M band, thus providing a versatile measuring tool for all 5G upcoming applications. Main Parameters* • Diode based 3-Axial isotropic sensor. • Frequency range: 2MHz-60 GHz. • Field strength range: 4 V/m-1000 V/m. (4 uW/cm2 – 270 mW/cm2) • Linearity: +/- 1.5 dB. • Linear power RMS response up to 150V/m (6 mW/cm2) • Frequency resp. (no corr. factors): 2 MHz-1 GHz (+/-2 dB) 1-26 GHz (+0/-6 dB), 26-60 GHz (+/- 6 dB) • Frequency response, (with corr. factors): +/- 1.5 dB • Measurement uncertainty, including the calibration and rotational deviation +/- 4.5 dB. • Rotational isotropicity: +/-3 dB • Temperature: 5-40 °C,
