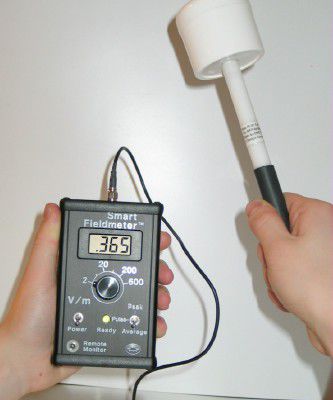

Electrical field probe PI-01C

isotropicbroadband

Isotropic Broadband Electric Field Probe Probe PI-01C 500 MHz- 2 GHz, 0.5 – 600 V/m Electric field probe PI-01C was designed for selective RF measurements. The ability to attenuate the signals above 3 GHz and reject signals below 300 MHz makes it invaluable tool for cell phone tower certification. Main Parameters • Diode based: 3-Axial isotropic sensor. • Sensitivity: 0.5 V/m. • Linearity: +/- 0.5 dB (1-400 V/m). • Dynamic range: >62 dB (single range). • In band response: 800-1000 MHz (+0/-1 dB) 500-2000 MHz (+0/-3 dB). Off band attenuation:>6 dB, F3 GHz • Calibration accuracy <1 dB (@942.5 MHz). • Temperature: 5-40 °C, • Humidity: RH 10-90%, non-condensing. • Temperature error: 2 V/m). • UK NPL or NIST traceable calibration. • Small size: LxD: 9.0×2.25 inch, 230×58 mm. • Weight: 0.2 lb, 100 g. • Operates with both RFP-04HF and RFP-05 meters. • Designed and made in the USA.
