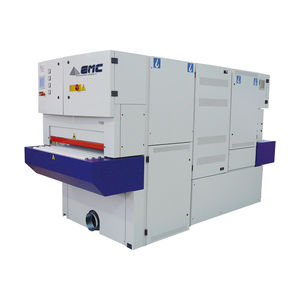

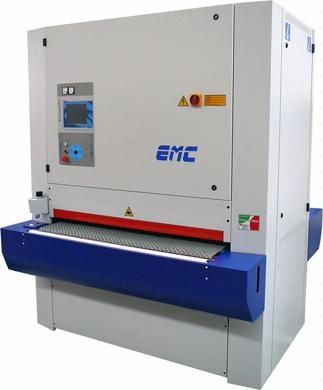

Roller sander VENUS 1100, VENUS 1300

wide-beltfor woodvariable-speed

Standard technical specifications Useful working width: mm 1100-1300 Working thickness min/max: mm 3÷170 Abrasive belt length Venus: mm 2200 Abrasive belt length Venus Super: mm 2620 Abrasive belt width: mm 1120-1320 Feed variable speeds: m/min 3,7-18 Rollers diameter: mm 190/220 Abrasive belt oscillation by electronic photocell Automatic star delta starters Automatic feed belt centering device Pad working pressure self-adjustment ON-OFF selector switch for rollers and pads Check control; self-diagnostic alarm control Versions 2RR - Two working units, roller & roller 2RK - Two working units, roller & combi 2RT - Two working units, roller & Roller Pad 3RRR - Three working units, roller, roller & roller 3RRK - Three working units, roller, roller & combi 3RRT - Three working units, roller, roller & pad Main options available Electronic sectioned pad 43 segments type "CP" Constant pressure New Touch-screen key board 7" wiht high resolution graphic, improved and simplyfied Rollers diameter mm 220 Vacuum table devices Satining brushing units Independent motors Main motors increased power to 26kW (35hp) each Self-floating rectified presser bars (shoes)
