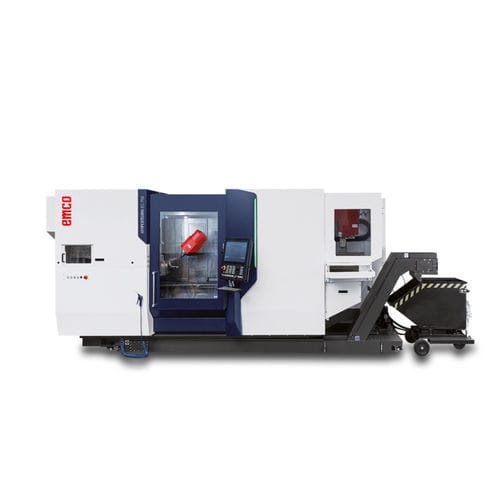

CNC milling-turning center HYPERTURN 65 Powermill G2

horizontal3-axisdouble-spindle

Main- and counter spindle, milling spindle, B and Y axis EMCONNECT – Digital Process Assistant (Sinumerik ONE) Additional tool turret with milling drive Tool magazin and control unit ergonomically placed 40-, 80-, 120-slot chain-type tool magazine Max. bar stock diameter 65 (102) mm Highlights High dynamics due to state-of-the-art spindle motor technology All spindles liquid-cooled for optimum thermostability High productivity due to short tool change times Bed design for maximum stability and oscillation damping Both tool systems can be used on both spindles Excellent repeatability due to linear guides Short set-up times due to ease of access to work area Gantry Loader Universal loading and unloading for preformed blanks and parts. Using the multiple grippers and handling systems the gantry loader can be customized to your individual needs. Compact standard automation for small and medium-sized batches for turning and milling machines. Reduction of working hours by up to 70% Compact and space-saving solution Graphically supported operation Free access to the machine door For small and medium-sized series Very short configuration and setup times No special knowledge about robots required On-site installation and training Short-bar loader IRCO IL-MUK 7012/10012 Automatic loading of bars up to ø102 mm and a max. length up to 1200 (1500) mm Round material or profile material Small footprint STL-Interface included Short-bar loader EMCO SL 1200 The EMCO short-bar loader SL 1200 is the perfect solution for the automatic reloading of pre-cut bars up to 1200 mm. The adavantage: small footprint and short loading times through shorter strokes.
