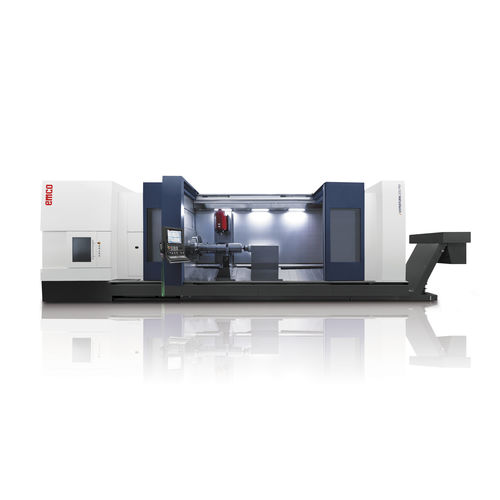

CNC milling-turning center HYPERTURN 200 Powermill

horizontal3-axisdouble-spindle

CNC machine turning with up to 200 tool magazine positions Additional tool magazine for boring bar up to 1500 mm long or special tools EMCONNECT – Digital Process Assistant (Sinumerik ONE) Highlights Automatic tool presetting and workpiece measuring touch probe Dynamic and precise B-axis with high torque and power Multitasking-control/Multi-technology Sinumerik ONE One or more NC-steady rest Two versions of milling spindles with 6500 or 10000 rpm, with HSK-T 100 or PSC80 ( Capto C8) Main spindle and Counter Spindle for highperformance processing with vibration-damped boring bars up to 1000 mm, including a special magazine (optional) Boring Bar Boring bar with vibration absorption featuring a diameter of 100 x 100 mm for internal turning operations. There are three specifically dimensioned tools available. Flexibility, accuracy and maximum productivity with high cutting performance. Milling Spindle For stable, precise and flexible drilling and milling operations. Up to 80 kW and 630 Nm of torque and 10000 rpm. Sealing air, internal high pressure coolant up to 40 bar and externally up to 14 bar with a 1400 liter paper band filter system as standard (80 bar option). The B-axis can be used at any angle or with an indexed B-axis in steps of 2,5°. Main Spindle For turning and milling operations, equipped with 84 kW and 6400 Nm torque. Sealing air, working area coolant and programmable clamping pressure are standard features on the Hyperturn 200. One or more programmable NC-steady rest can assist the processing. Deep Hole Drilling Deep hole drilling for diameters of up to 6 x 500 mm with a maximum of 80 bar.
