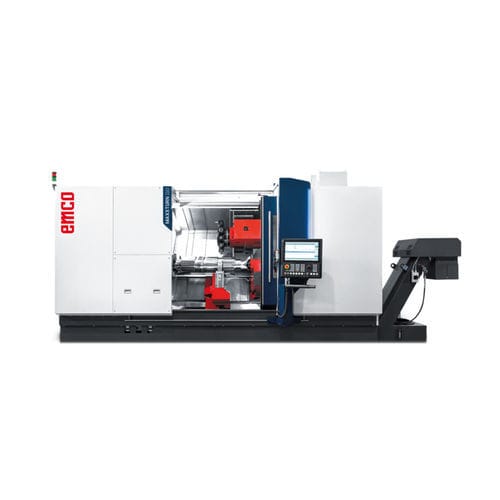

CNC turning center MAXXTURN 1103-axisuniversalinclined bed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Structure
- universal, inclined bed
- Spindle mount
- A2-11
- Performance
- high-precision, high-speed
- Other characteristics
- compact
- Associated function
- drilling, milling machine
- Diameter
Max.: 680 mm
(26.77 in)Min.: 0 mm
(0 in)- Spindle speed
2,000 rpm, 2,500 rpm, 3,500 rpm
(12,566.371 rad.min-1, 15,707.963 rad.min-1, 21,991.149 rad.min-1)- Maximum part length
1,500 mm, 2,500 mm, 3,500 mm
(59 in, 98 in, 138 in)- Maximum cutting diameter
680 mm
(27 in)- Bar capacity
95 mm
(4 in)- Axe X
420 mm
(17 in)- Axe Z
1,560 mm, 2,560 mm, 3,560 mm
(61 in, 101 in, 140 in)- Rapids on X
24 m/min
- Rapids on Z
30 m/min
- Nominal power
33 kW, 52 kW
(44.9 hp, 70.7 hp)- Maximum torque
800 Nm, 2,480 Nm, 3,400 Nm
(590 ft.lb, 1,829 ft.lb, 2,508 ft.lb)- Coolant capacity
400 l, 450 l, 500 l
(106 gal, 119 gal, 132 gal)- Overall lenght
6,800 mm, 7,800 mm
(268 in, 307 in)- Overall width
9,500 mm
(374 in)- Overall height
2,700 mm
(106 in)- Weight
17,000 kg, 25,000 kg
(37,479 lb, 55,116 lb)
Description
HIGHLIGHTS
/ High thermostability and precise machining
/ High rapid motion speed
/ Very stable Y axis with long travel High-precision C axis
/ Driven tools 12 time VDI50 radial turret with single-motor engineering
/ Very compact machine layout
EQUIPMENT
/ Main spindle with 3 bed lengths up to 3500 mm
/ Tool turret
/ Driven tool for milling and drilling machining
/ Y axis directly implemented in machine construction
/ Steady rest for the machining of shafts
/ Sinumerik ONE
