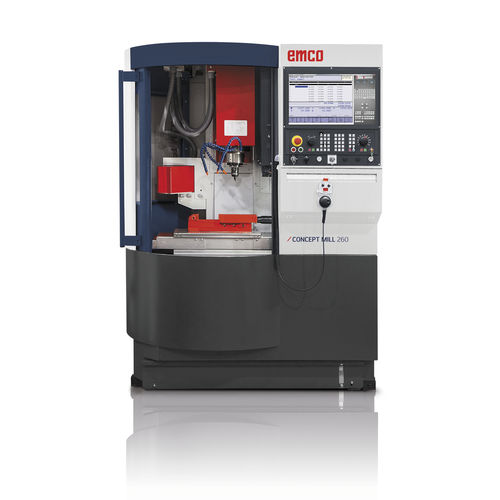

3/4-axis CNC milling machine CONCEPT MILL 260vertical20 toolscompact
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3/4-axis
- Spindle orientation
- vertical
- Number of tool stations
- 20 tools
- Other characteristics
- compact
- X travel
350 mm
(13.78 in)- Y travel
250 mm
(9.84 in)- Z travel
300 mm
(11.81 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 10,000 rpm
(62,832 rad.min-1)- Work feed X-axis
Min.: 0 m/min
Max.: 10 m/min
- Work feed Y-axis
Min.: 0 m/min
Max.: 10 m/min
- Work feed Z-axis
Min.: 0 m/min
Max.: 10 m/min
- Table load capacity
100 kg
(220 lb)- Weight
1,970 kg
(4,343.11 lb)- Overall length
1,600 mm
(63 in)- Overall width
1,700 mm
(66.9 in)- Overall height
2,200 mm
(86.6 in)
Description
HIGHLIGHTS
/ High drive speed
/ 20-tool magazine
/ Tool tapper SK30 according DIN 69871
/ Stable and compact machine construction
/ Best view when fully enclosed
/ USB and Ethernet interface integrated
/ Servo motor technology in all axes
/ Made in the Heart of Europe
EQUIPMENT
/ Tool magazine with SK30 DIN69871
/ Up to 5 CNC controls on 1 machine applicable
/ 20 times tool drum with double-gripper
/ All axes equipped with servo drive motors
/ Rotary table as an optional fourth axis
/ DNC robotic interface
/ NC dividing unit as an optional fourth axis
/ Rotating and swiveling unit as 5th axis
